Request custom fields within the 'Board Info" and/or "Product Info" areas

1

Hi Stefan,

We would like to use custom fields within the “Board Info” and/or “Product Info” areas, as permitted by the Platform Management FRU Information Storage Definition.

To enable this, we kindly request that you add new dedicated XML tags to the configuration file, so that these custom fields can be defined appropriately.

Thank you in advance for your assistance.

Cheers,

Fatih

2

Hello Fatih,

I’m not sure what you are referring to, is this information in the FRU data? If so, you may be able to write this for example using ipmitool.

cheers,

Stefan

3

Hi Stefan,

To clear things up, we would like to use the optional custom fields in the FRU Board Information Area and Product Information Area, specifically the “Custom Board Info fields” and “Custom Product Info fields” defined in the FRU format (see images below).

Using ipmitool is not suitable for us, as we want to ensure reproducibility, traceability, and integration into our automated workflow. We therefore kindly ask for your assistance in defining these optional custom fields in the XML Configuration File, as soon as possible.

For your information, here is a concrete example of how to use the “Custom Product Information” field from the FRU of Vadatech’s ATC807 switch:

From Shelf Manager:

# clia fruinfo -v board 7

Pigeon Point Shelf Manager Command Line Interpreter

82: FRU # 0, FRU Info
Common Header:    Format Version = 1

Board Info Area:
    Version     = 1
    Language Code            = 25
    Mfg Date/Time            = Jan 24 11:49:00 2013 (8976229 minutes since 1996)
    Board Manufacturer       = VadaTech
    Board Product Name       = IPMC
    Board Serial Number      = 0820358
    Board Part Number        = ATC807
    FRU Programmer File ID   = MgtCtrl.bin
    Custom Board Info        =

Product Info Area:
    Version     = 1
    Language Code            = 25
    Manufacturer Name        = VadaTech
    Product Name             = IPMC
    Product Part / Model#    = ATC807
    Product Version          = 01.55
    Product Serial Number    = 0820358
    Asset Tag                =
    FRU Programmer File ID   =
    Custom Product Info      = 5D32

    ...

From Linux machine:

> ipmitool -H lapp-sm20 -I lan -A NONE -b 0 -t 0x82 fru print -v
FRU Device Description : Builtin FRU Device (ID 0)
 Board Mfg Date        : Thu Jan 24 12:49:00 2013
 Board Mfg             : VadaTech
 Board Product         : IPMC
 Board Serial          : 0820358
 Board Part Number     : ATC807
 Board FRU ID          : MgtCtrl.bin
 Product Manufacturer  : VadaTech
 Product Name          : IPMC
 Product Part Number   : ATC807
 Product Version       : 01.55
 Product Serial        : 0820358
 Product Extra         : 5D32
   PICMG Extension Record

 ...

Cheers,

Fatih

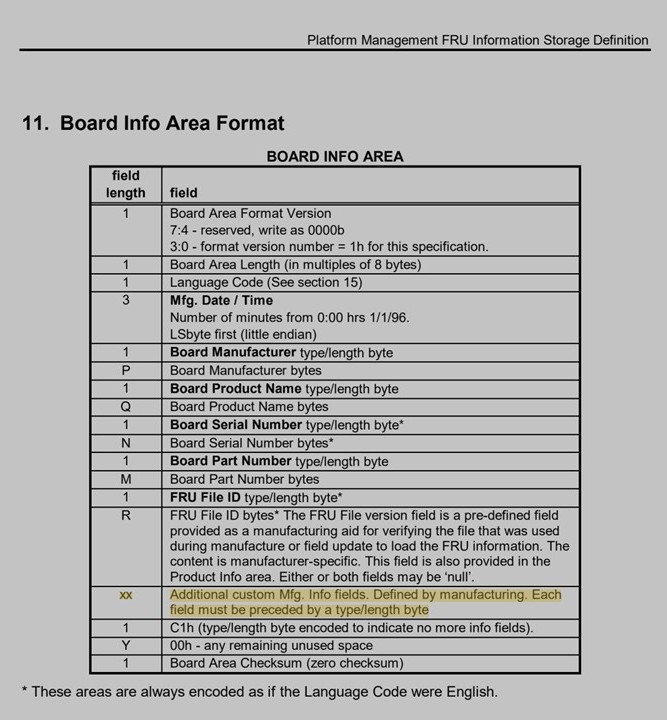

FRU_Board_Info_Area_Format
FRU_Board_Info_Area_Format667×720 102 KB

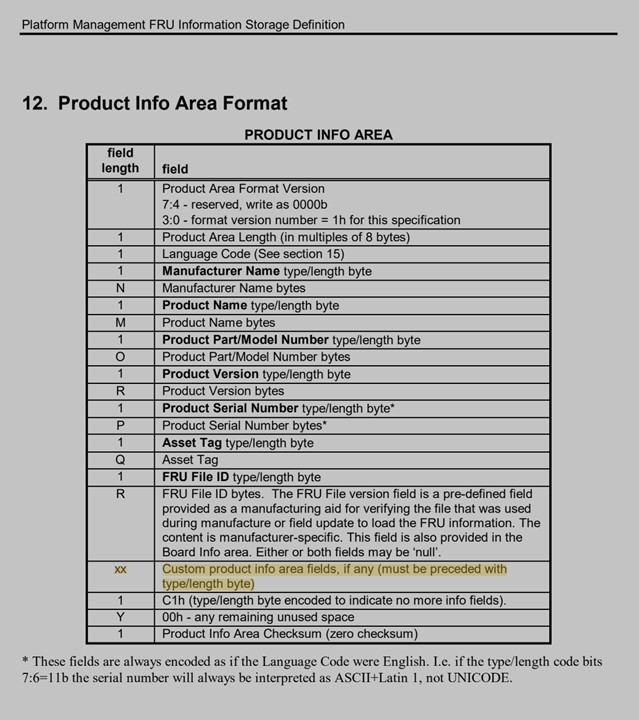

FRU_Product_Info_Area_Format
FRU_Product_Info_Area_Format639×720 101 KB

4

Hello Fatih,

thank you for the clarification. I checked, and the custom fields are indeed supported by the PigeonPoint FRU compiler. I will try to add the relevant XML entries for the board and product info sections.

cheers,

Stefan

5

Hi Stefan,

Just following up to see if there has been any progress on the XML entries you mentioned.

Cheers,

Fatih

6

Hello Fatih,

sorry I was occupied with the request for storing the FRU information on the EEPROMs on the front blade/non-intelligent RTM. Fortunaltely this seem to work now.

I still have to add the definitions for the custom fields to the XML framework, this should hopefully not be too complicated.

cheers,

Stefan

7

Hi Stefan,

Just a quick follow-up to check on the status of adding the definitions for the custom field to the XML framework.

Thanks in advance for your feedback.

Cheers,

Fatih
